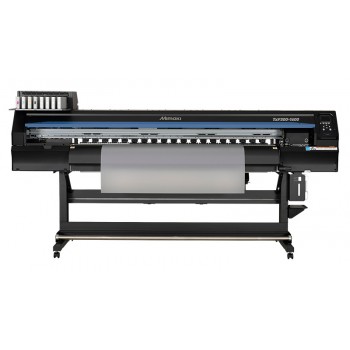

New Mimaki TxF300 Series - DTF (Direct To Film) Printer
Click image for Gallery
Product Code: CCS-MIMK-009
Availability: In Stock
Availability: In Stock
Price:
$7,997.00
Ex Tax: $7,997.00
Ex Tax: $7,997.00
New Mimaki TxF300 Series - DTF (Direct To Film) Printer
Specifications
Printhead
Dual On-demand piezo heads
Print resolution
720dpi, 1,440dpi
Maximum Print Width
TxF300-75: 800mm (31.5″ in)
TxF300-1600: 1610 mm (63.4 in)
Maximum media width
TxF300-75: 810mm (31.9 in)
TxF300-1600: 1620 mm (63.8 in)
Maximum Media Thickness
up to 0.04″ (1 mm)
Maximum Media Weight
Up to 99.2 pounds (45 kg)
Ink Type
Heat transfer pigment ink PHT50 (C,M,Y,K,W)
Interface
Ethernet 1000 BASE-T / USB2.0
Power Supply
Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power Consumption
Txf300-75: 100V system: 1.44kW, 200V system: 1.92kW
TxF300-1600: AC100-120V, 1300W or less, AC200-240V, 1750W or less x1
Operational Environment
Temperature: 68-86 F (20° – 30°C)
Humidity: 35 – 65 % RH (Non condensing)
Dimensions (W × D × H)
TxF300-75: 1,965mm×700mm×1,392mm (77.4 x 27.6 x 54.8 in)
TxF300-1600: 3,783mm x 2,700mm x 1,392mm (148.93 in W x 106.3 in D x 54.80 in H)
Weight
126kg (277.8 lb)
Certifications
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH,
Energy Star, RCM, KC
