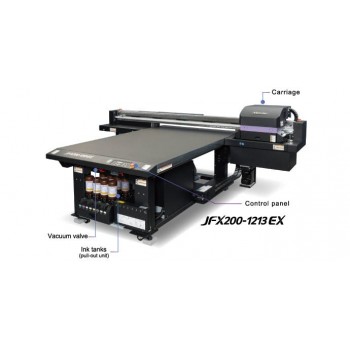

New Mimaki JFX200-1213 EX - medium-format UV-LED flatbed printer

Click image for Gallery
Product Code: CCS-MIMK-007
Availability: In Stock
Price: In Stock $35,747.00
Ex Tax: $35,747.00
Qty: +
-
  - OR -

New Mimaki JFX200-1213 EX - medium-format UV-LED flatbed printer

Specifications
Printhead
Three staggered on-demand piezo heads

Print resolution
300, 450, 600, 900, 1,200dpi

Print Speed (4 Color Mode)
up to 269 SqFt/Hr (25 m2/h)

Maximum Print Area
50.0 in x 51.2 in (1270 mm x 1300 mm)

Maximum media area
52 in x 54 in (1320 mm x 1370 mm)

Maximum Media Thickness
up to 1.97″ (50 mm)

Maximum Media Weight
110.3 lbs. (50.0 kg)

Ink Type
Rigid: LH-100 ink; C, M, Y, K, Lc, Lm, W, Cl

Flexible:

LUS-150 ink; C, M, Y, K, Lc, Lm, W with LUS-100 Cl

LUS-120 ink; C, M, Y, K, W, Cl

LUS-350 ink; C, M, Y, K, W, Cl

Interface
Ethernet 10,000 BASE-T

Power Supply
Single phase AC200-240±10% 50/60 Hz±1 Hz x 1

Power Consumption
2.88 kVA or less

Operational Environment
Temperature 68° – 86° F (15-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)
125 in W x 96 in D x 49 in H (3175 mm W x 2450 mm D x 1250 mm H)

Weight
1124 lbs. (510 kg)

Certifications
VCCI Class A, CE Mark, CB Report, US safety standard UL (UL62368-1),RoHS Directive,

FCC Class A, Machinery Directive, RCM
