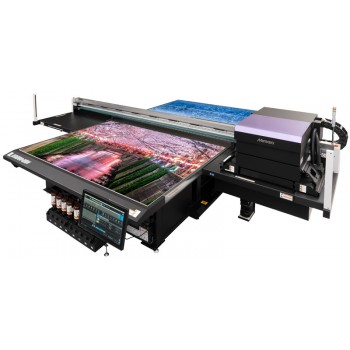

New Mimaki JFX600 Series - Large Format UV LED Flatbed Printers
Click image for Gallery
Product Code: CCS-MIMK-008
Availability: In Stock
Availability: In Stock
Price:
$103,950.00
Ex Tax: $103,950.00
Ex Tax: $103,950.00
New Mimaki JFX600 Series - Large Format UV LED Flatbed Printers
Specifications
Printhead
Sixteen on-demand piezo heads in a staggered array
Print Resolutions
600 x 600dpi, 600 x 1,200dpi, 1,200 x 1,200dpi
Print Speed (4 Color Mode)
up to 2,152.78 SqFt/Hr (200.0 m2/h)
Maximum Print Area
JFX600-2513: 98.43″ x 51.18″ (2,500 mm x 1,300 mm)
JFX600-2531: 98.443″ x 122.05″ (2,550 mm x 3150 mm)
Maximum media area
JFX600-2513: 101.6” x 80.3”
JFx600-2531: 100.43″ x 124.05″
Maximum Media Thickness
up to 2.36″ (60 mm)
Maximum Media Weight
10 lb./ft2 (50 kg/m2)
Ink Type
Rigid: LH-100, Flexible: LUS-120, LUS-150
Interface
Ethernet 10,000 BASE-T
Power Supply
AC 200 – 240 V, 50/60 Hz
Power Consumption
Less than 4.8kWhr x3
Operational Environment
Temperature 68° – 86° F (15-30° C)
Humidity: 35–65 % RH (Non condensing)
Dimensions (W × D × H)
JFX600-2513: 207.48″ x 110.24″ x 62.99″ (5,300×2,850×1,700mm)
JFX600-2531: 213” x 191” x 67” (5400mm x 4850mm x 1700mm)
Weight
JFX600-2513: 2,645.5 lbs. (1,200 kg)
JFX600-2531: 3,527 lbs. (1,600 kg)
Certifications
UL 775 ETL, CE Marking (EMC Directive,Low Voltage Directive, Machinery Directive), RoHS / REACH / EAC
