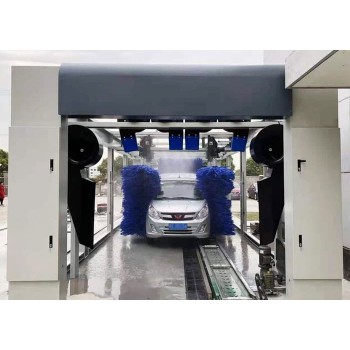

Shinewash Tunnel Car Wash System Q9 - Integrated intelligent induction system
Click image for Gallery
Product Code: CCS-ACWM-004
Availability: In Stock
Availability: In Stock
Price:
$15,999.00
Ex Tax: $15,999.00
Ex Tax: $15,999.00
Shinewash Tunnel Car Wash System Q9 - Integrated intelligent induction system
One of the main advantages of using the Tunnel car wash machine over other car wash systems is its high efficiency. With automated processes and minimal human involvement, cars can be processed quickly, allowing for a higher throughput rate. Additionally, this machine can handle a wide range of cars, including SUVs and trucks, which makes it ideal for commercial use.
Product Feature:
1. Fast car washing, high automation, safe and convenient.
2. More than 90% of the parts are imported, such as PLC, reducing motor, control system, etc.
3. Hot-galvanized mainly frame, module design, mortise and tenon structure.
4. Intelligent anti-collision system, self protection system, emergency stop system.
5. 9 brushes with foam spraying and water wax spraying shstem.
6.high work efficiency, low failure rate and easy maintenance.
Tunnel Car Wash System Q9 Advantages
Fast car washing, high degree of automation, safety and convenience, and the car washing operation can be automatically completed without manual work;
The machine is composed of the whole machine frame, water circuit, electricity circuit, air circuit, cleaning and maintenance spraying system, conveyor, unique strong fixed air drying system, international general brush, industrial automation PLC control system configured with foreign brand electronic components, etc,
The appearance design is novel. The overall frame of the machine is first treated with high temperature phosphating and hot-dip galvanizing, and then the surface is powder painted, which is corrosion-resistant and rust-proof.
Unique environmental protection and water-saving system, new touch-type operation display screen, simple and easy to understand, human-machine dialogue is realized through intuitive touch screen, and automatic fault detection system makes the equipment more safe and reliable
The actual use cost is low, the work efficiency is more than 5 times that of the traditional manual car wash, and it has impeccable functional advantages.
Specification:
Model 9 Brushes Tunnel type Q9 Water Wax Consumption 12ML/Car
Machine Size (m) L12.5*W4*H3 Electricity Consumption 0.6K WH/C >ar
Max. Car Size (m) L≤unlimited*W≤2.3*H≤2.1 Power Supply 380V/50Hz/21KW
Installation Size (m) L7.L24xW4.5xH3.2 Fan Drying Motor SIX Groups drying motor: 45KW
Suitable Cars Sedans, SUVS, MPV, etc. Top Brush 1
Wash Time 1.5-3 min./car Big Vertical Brush 4
Water Consumption 80-1 50I ./car Skirt Brush 4
Foam Consumption 7ML /Car Horizontal Wheel Brush –
